PGE7S系列Q170平台工业一体机/工业平板电脑电阻触摸屏

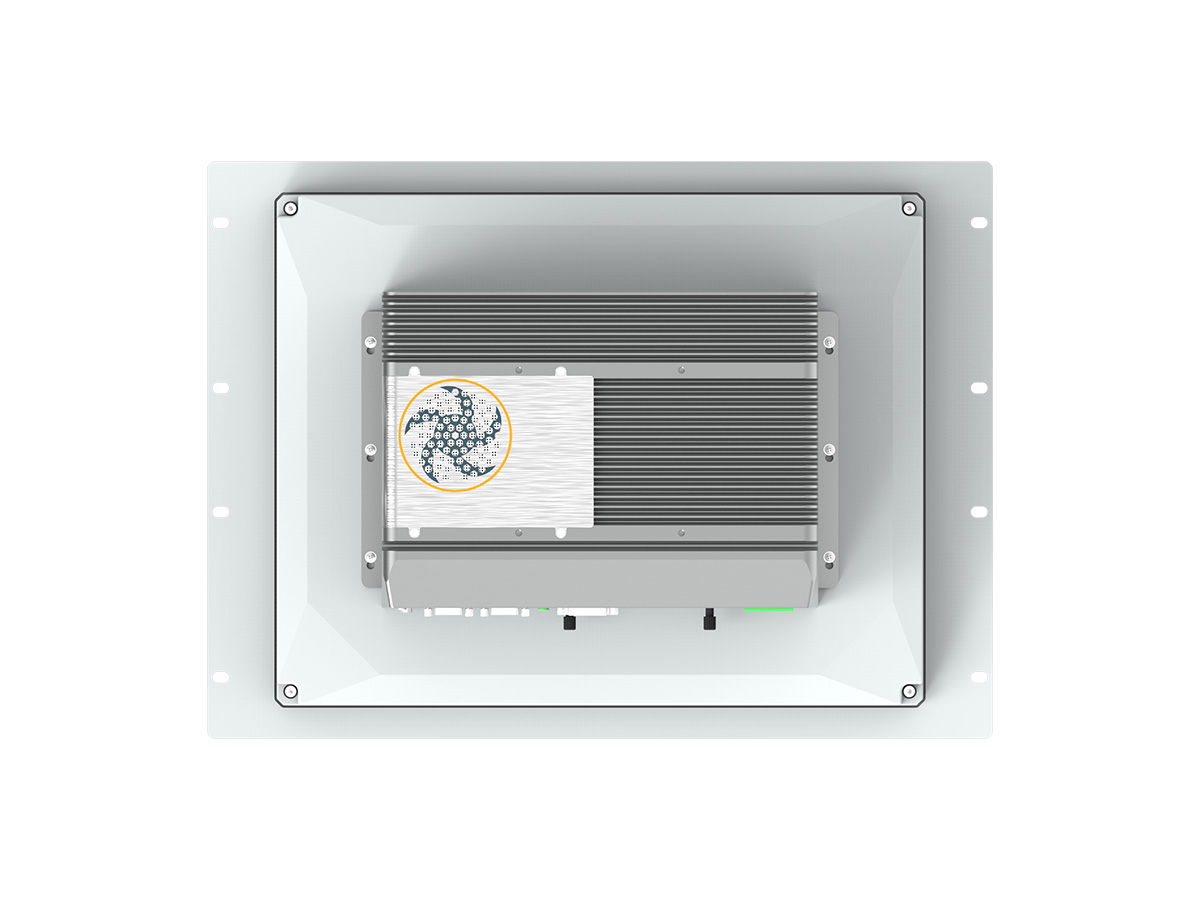

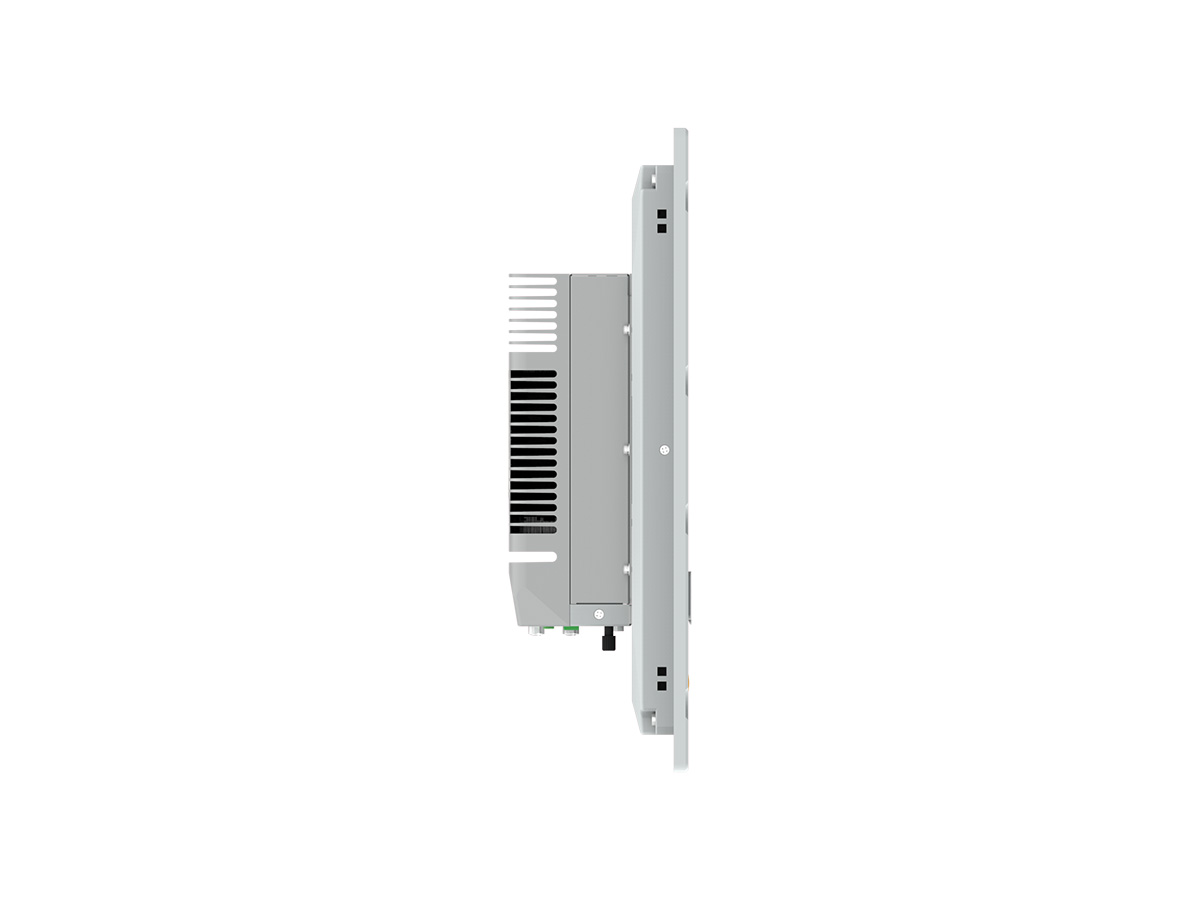

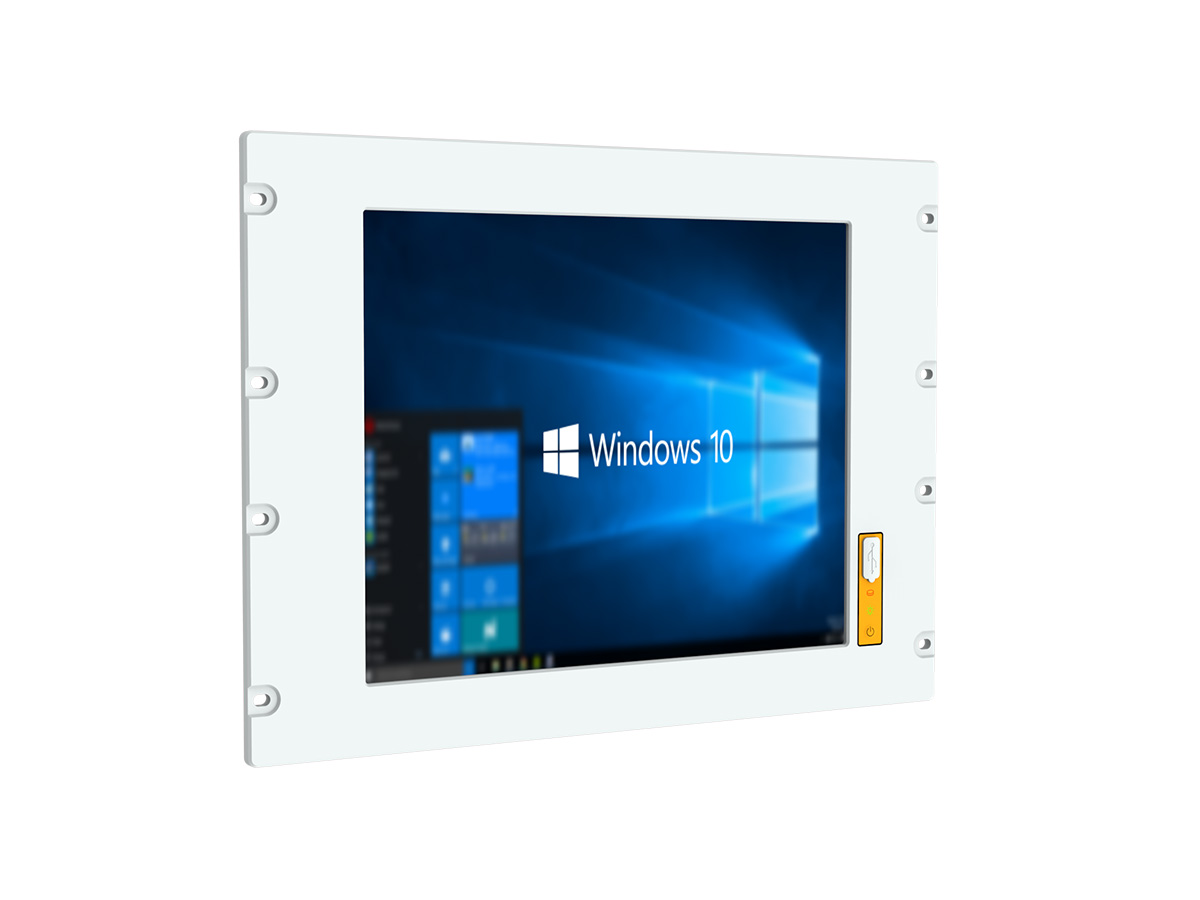

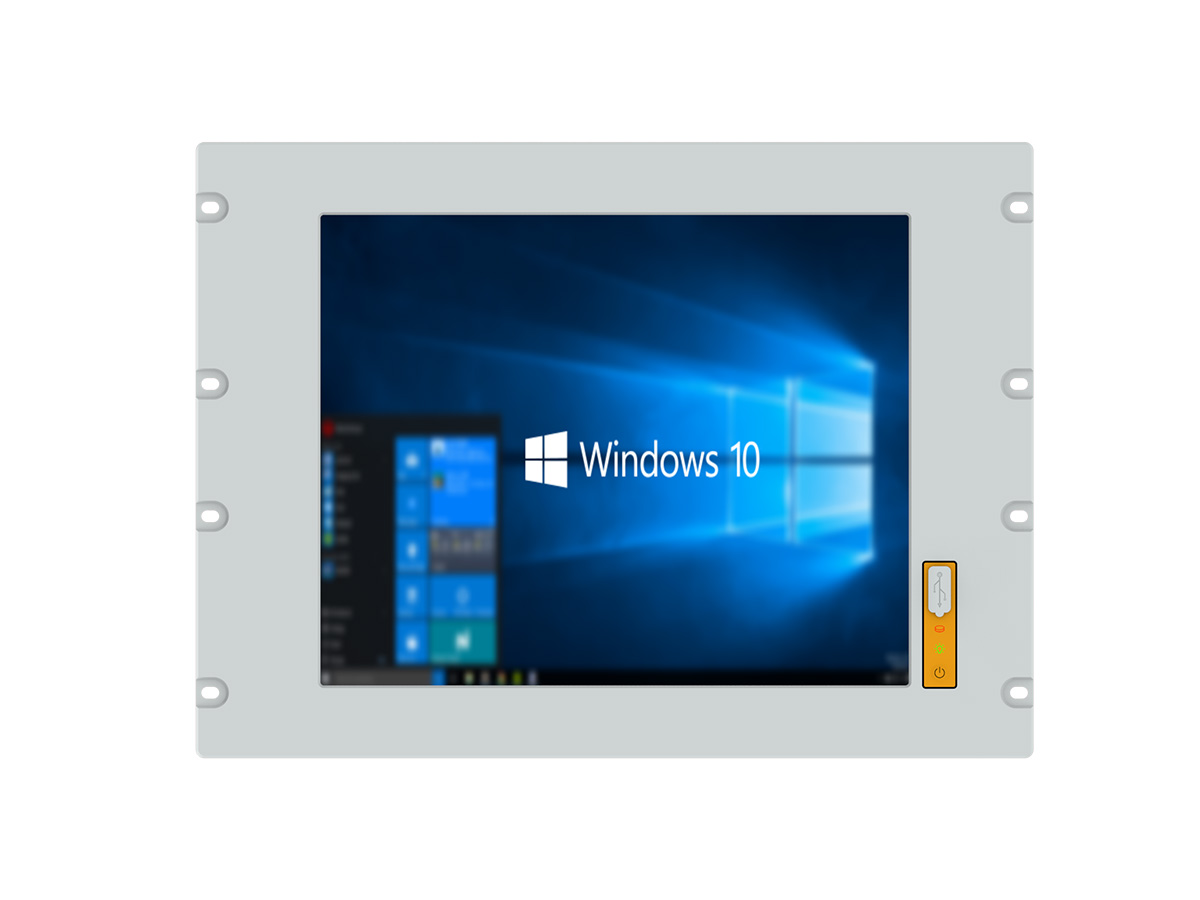

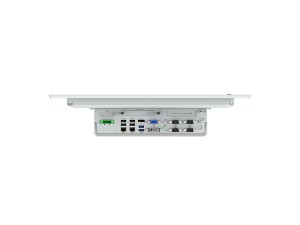

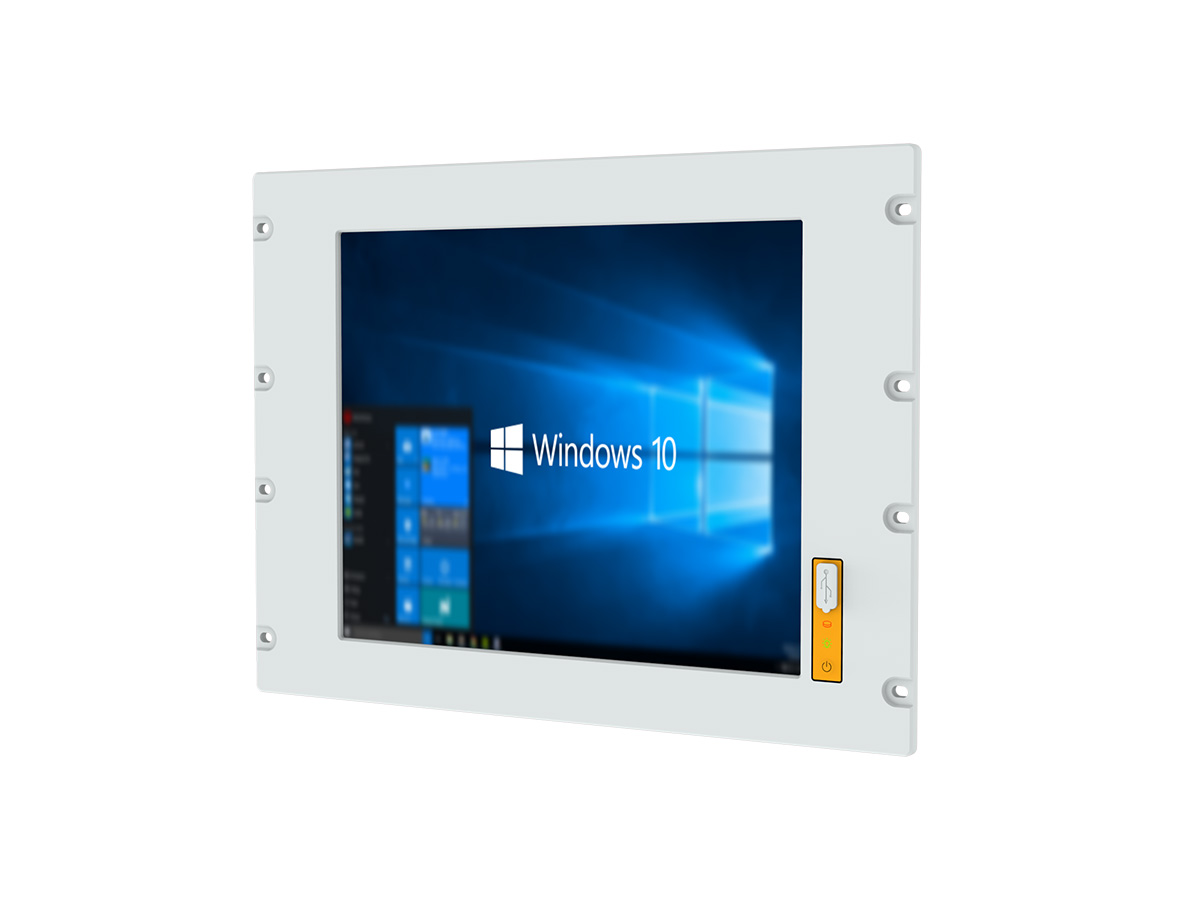

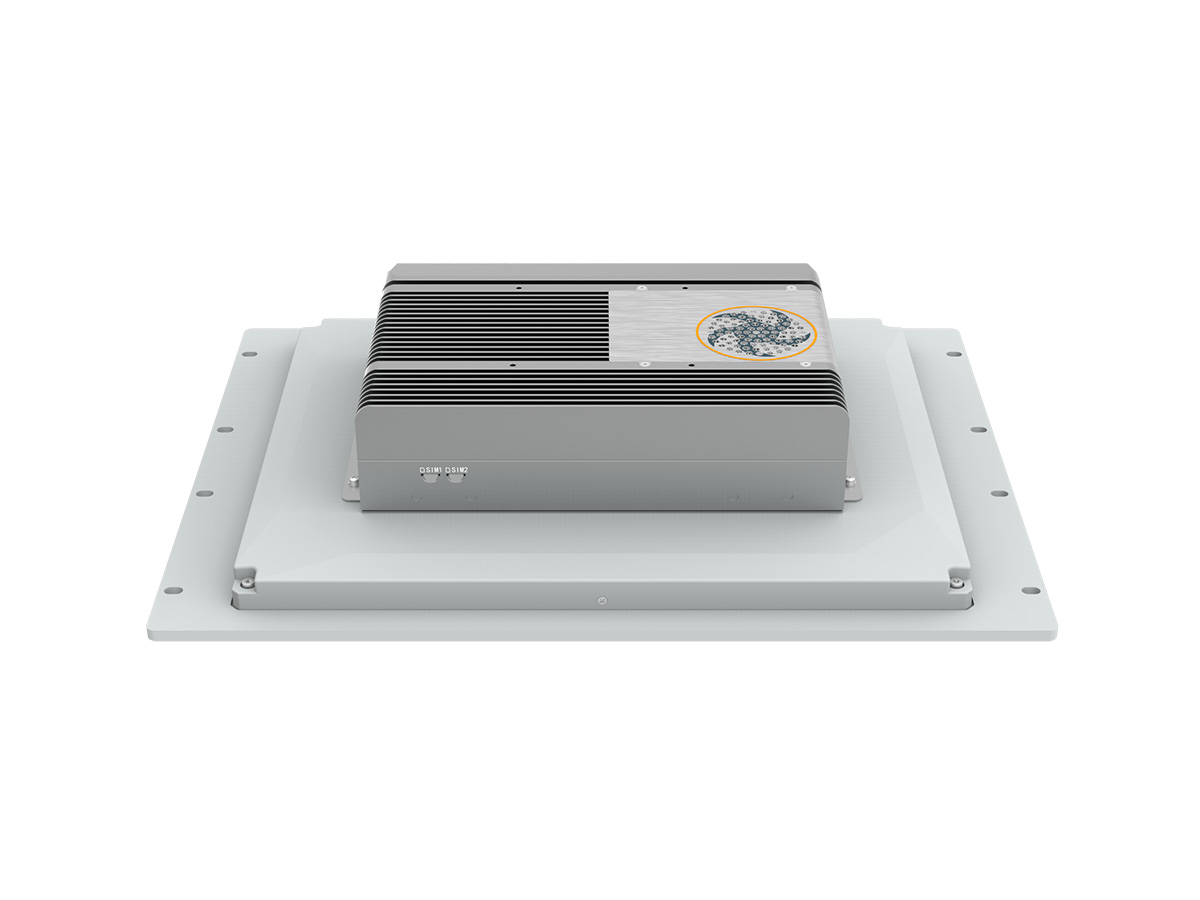

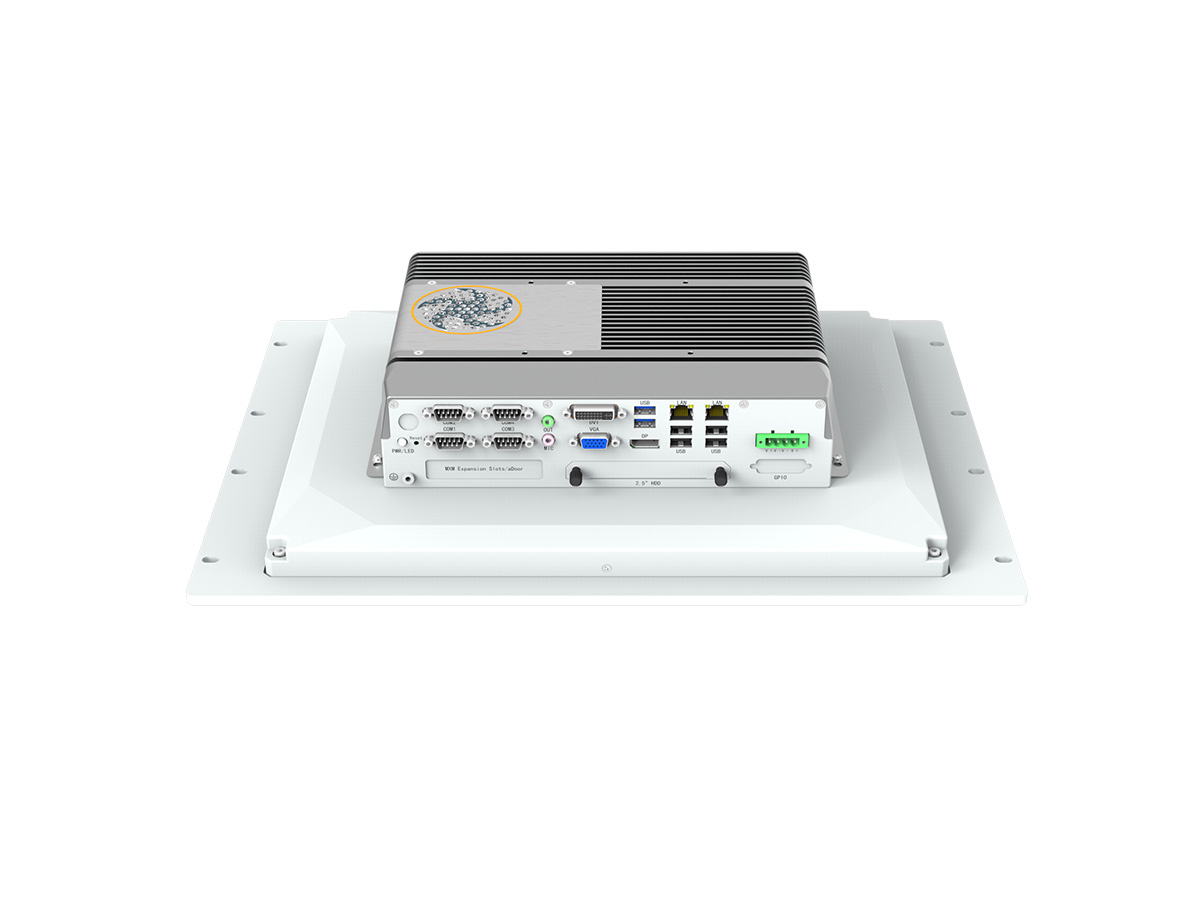

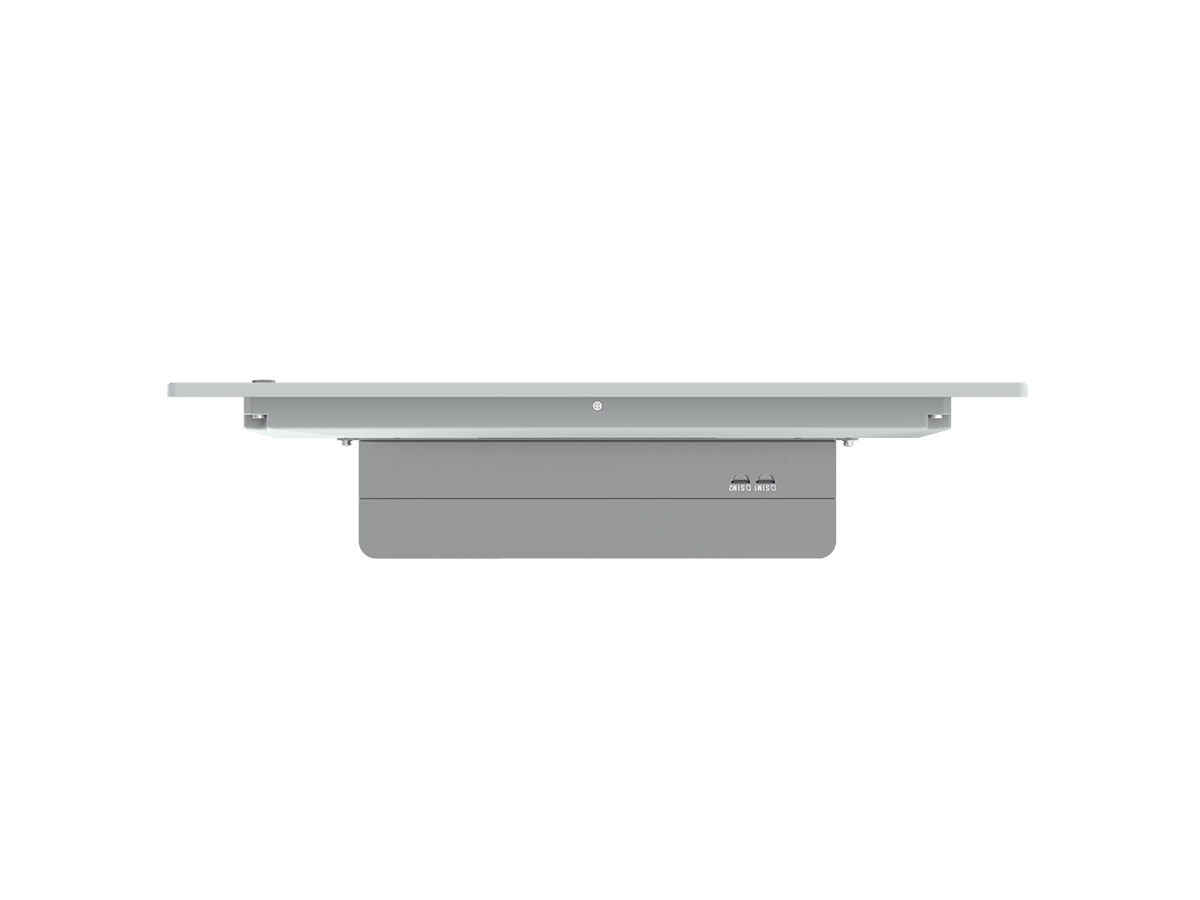

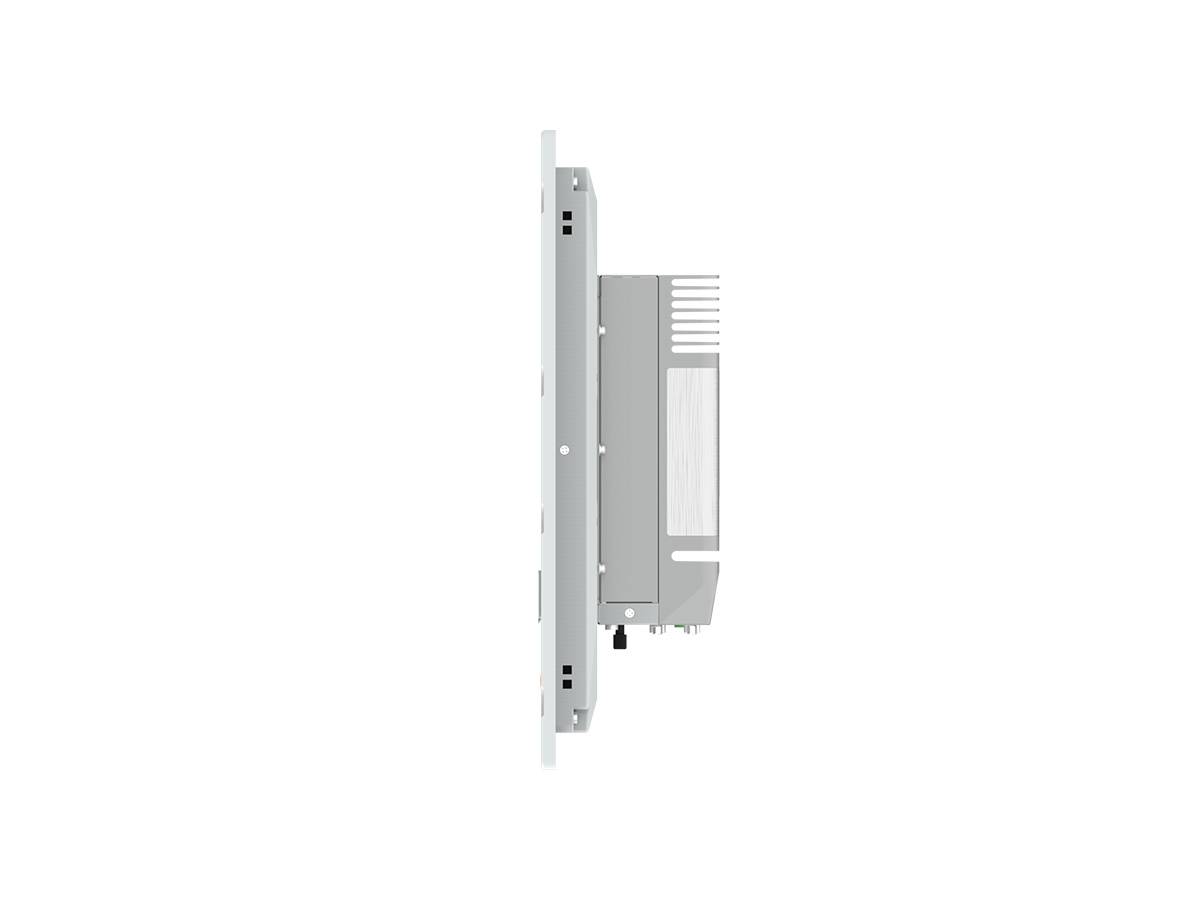

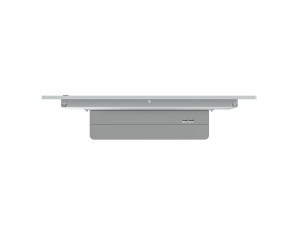

Note: The product image displayed above is PG170RF-E7S-Q170 model

PGE7S系列Q170平臺工業一體機/工業平板電腦電阻觸摸屏

特點:

電阻觸摸屏設計
模塊化設計17/19″可選,支持方屏/寬屏
前面板滿足IP65要求
前面板集成USB Type-A和信號指示燈
支持Intel? 6th to 9th Gen Core/Pentium/Celeron Desktop CPU, TDP 65W,
搭配Intel? Q170芯片組
2個Intel千兆網絡接口和4個DB9串口
M.2和2.5寸雙硬盤位存儲支持
4路顯示輸出 VGA,DVI-D,DP++和內部LVDS,最高支持4K@60Hz分辨率
9~36V直流供電（可選12V）
上架式/VESA安裝

遠程管理
狀態監控
遠程運維
安全控制

聯系我們

掃碼即可添加(jia)微(wei)信，售(shou)前客服為(wei)您提供咨詢服務(wu)

產品描述

阿普奇電阻觸摸屏工業一體機(ji)PGxxxRF-E7S系列(lie)Q170平臺是一款具有抗(kang)性觸摸屏設計的強大工業計算機產(chan)品(pin)。采用(yong)模(mo)塊化設計，可供(gong)用(yong)戶(hu)選(xuan)擇17英(ying)寸(cun)或(huo)19英寸的顯(xian)示屏，同(tong)時(shi)支(zhi)持方(fang)形(xing)屏幕和寬(kuan)屏幕。其前面板符合(he)IP65防護(hu)等級要求，保證產品在(zai)惡劣環境下的可靠性。前(qian)面板集成了USB Type-A接口和(he)信號(hao)指(zhi)示燈，方便用戶快速連(lian)接設備并隨(sui)時監控工作狀態。采(cai)用英特(te)爾?Q170芯(xin)片組，支持英特爾?第(di)6至9代(dai)Core/Pentium/Celeron桌面CPU（TDP 65W），具有出色的性(xing)能和(he)穩定(ding)性(xing)。此外，產品配(pei)備了2個(ge)英特爾千兆網絡接口(kou)和4個(ge)DB9串(chuan)口，滿足(zu)用戶對于網絡和(he)數(shu)據連接(jie)的需求。M.2和2.5英(ying)寸雙硬盤存(cun)儲支(zhi)持，為用戶提供(gong)了(le)更多的存(cun)儲選擇空間。此外(wai)，該(gai)工業一體機還支(zhi)持4路顯示輸出（VGA，DVI-D，DP++和內置LVDS），支持高(gao)達4K@60Hz的分辨率，9~36V的(de)直流電源輸入（可選12V），適(shi)用于不同(tong)的電源環境。另外，支持機架(jia)安裝和(he)VESA掛載，可靈(ling)活滿足不(bu)同的安裝需求(qiu)。

總的來說，阿普奇的PGxxxRF-E7S系(xi)列Q170平臺工業一(yi)體機是(shi)一(yi)款功能(neng)強大、穩定(ding)可(ke)靠(kao)的產(chan)品，具有(you)廣(guang)闊的應用(yong)前(qian)景(jing)。

產品(pin)介紹(shao)

工程圖紙

下載(zai)產品資料(liao)

掃碼添加微信(xin)，獲取(qu)最新產品資料文件(jian)

Model		PG170RF-E7S	PG190RF-E7S
LCD	Display Size	17.0"	19.0"
	Display Type	SXGA TFT-LCD	SXGA TFT-LCD
	Max. Resolution	1280 x 1024	1280 x 1024
	Luminance	250 cd/m2	250 cd/m2
	Aspect Ratio	5:04	5:04
	Viewing Angle	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.7M
	Backlight Lifetime	30,000 hr	30,000 hr
	Contrast Ratio	1000:01:00	1000:01:00
Touchscreen	Touch Type	5-Wire Resistive Touch
	Controller	USB signal
	Input	Finger/Touch pen
	Light Transmission	≥78%
	Hardness	≥3H
	Click lifetime	100gf, 10 million times
	Stroke lifetime	100gf, 1 million times
	Response time	≤15ms
Processor System	CPU	Intel? 6/7/8/9th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	65W
	Socket	LGA1151
	Chipset	Q170
	BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR4 up to 2133MHz
	Max Capacity	64GB, Single Max. 32GB
Graphics	Controller	Intel? HD Graphics
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage	SATA	1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA3.0, Internal 2.5" hard disk bays (T≤9mm, Optional) Support RAID 0, 1
	M.2	1 * M.2 Key-M (PCIe x4 Gen 3 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280)
Expansion Slots	MXM/aDoor	1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) 1 * aDoor Expansion Slot
	Mini PCIe	1 * Mini PCIe (PCIe x1 Gen 2 + USB 2.0, with 1 * SIM Card)

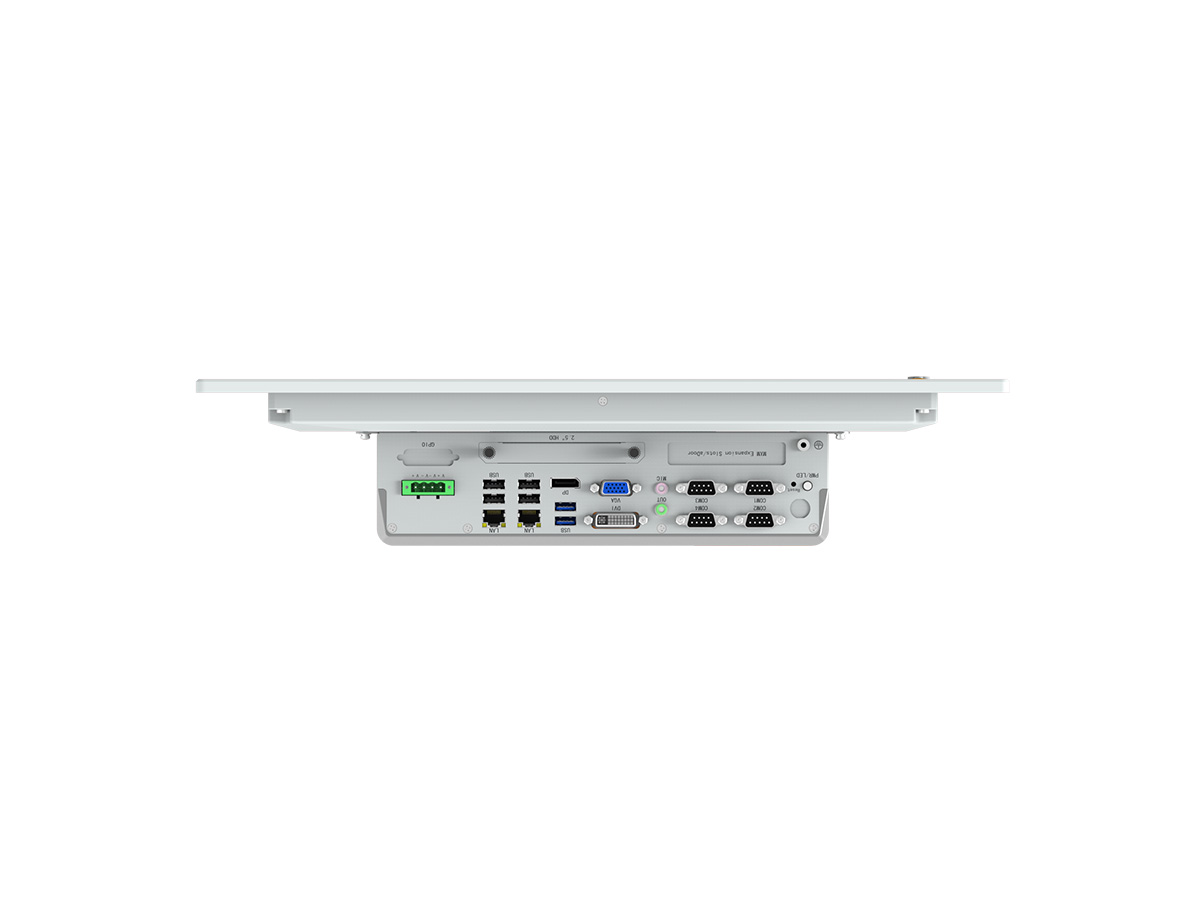

Front I/O	Ethernet	2 * RJ45
	USB	6 * USB3.0 (Type-A, 5Gbps)
	Display	1 * DVI-D: max resolution up to 19201200 @ 60Hz 1 VGA (DB15/F): max resolution up to 19201200 @ 60Hz 1 DP: max resolution up to 4096*2160 @ 60Hz
	Audio	2 * 3.5mm Jack (Line-Out + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M)
	Button	1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)
Rear I/O	Antenna	4 * Antenna hole
	SIM	2 * Nano SIM card slots
Internal I/O	USB	2 * USB2.0 (wafer)
	LCD	1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
	TFront Panel	1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
	Front Panel	1 * Front Panel (PWR + RST + LED, wafer)
	Speaker	1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
	Serial	2 * RS232 (COM5/6, wafer)
	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
	LPC	1 * LPC (wafer)
	SATA	2 * SATA 7P Connector
	SATA Power	2 * SATA Power (SATA_PWR1/2, wafer)
	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (wafer)
Power Supply	Type	DC, AT/ATX
	Power Input Voltage	9 ~ 36VDC, P≤240W
	Connector	1 * 4Pin Connector, P=5.00/5.08
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	6/7th Core?: Windows 7/10/11 8/9th Core?: Windows 10/11
	Linux	Linux
Watchdog	Output	System Reset
	Interval	Programmable via Software from 1 to 255 sec
Mechanical	Enclosure Material	Radiator/Panel: Aluminum, Box/Cover: SGCC
	Mounting	Rack-mount, VESA
	Dimensions	482.6mm(L) * 354.8mm(W) * 98.7mm(H)	482.6mm(L) * 354.8mm(W) * 97.7mm(H)
	Weight	Net: 8.7kg, Total:11.7kg	Net: 9.kg, Total: 13.1kg
Environment	Heat Dissipation System	PWM FAN Cooling
	Operating Temperature	0~50℃	0~50℃
	Storage Temperature	-20~60℃	-20~60℃
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
