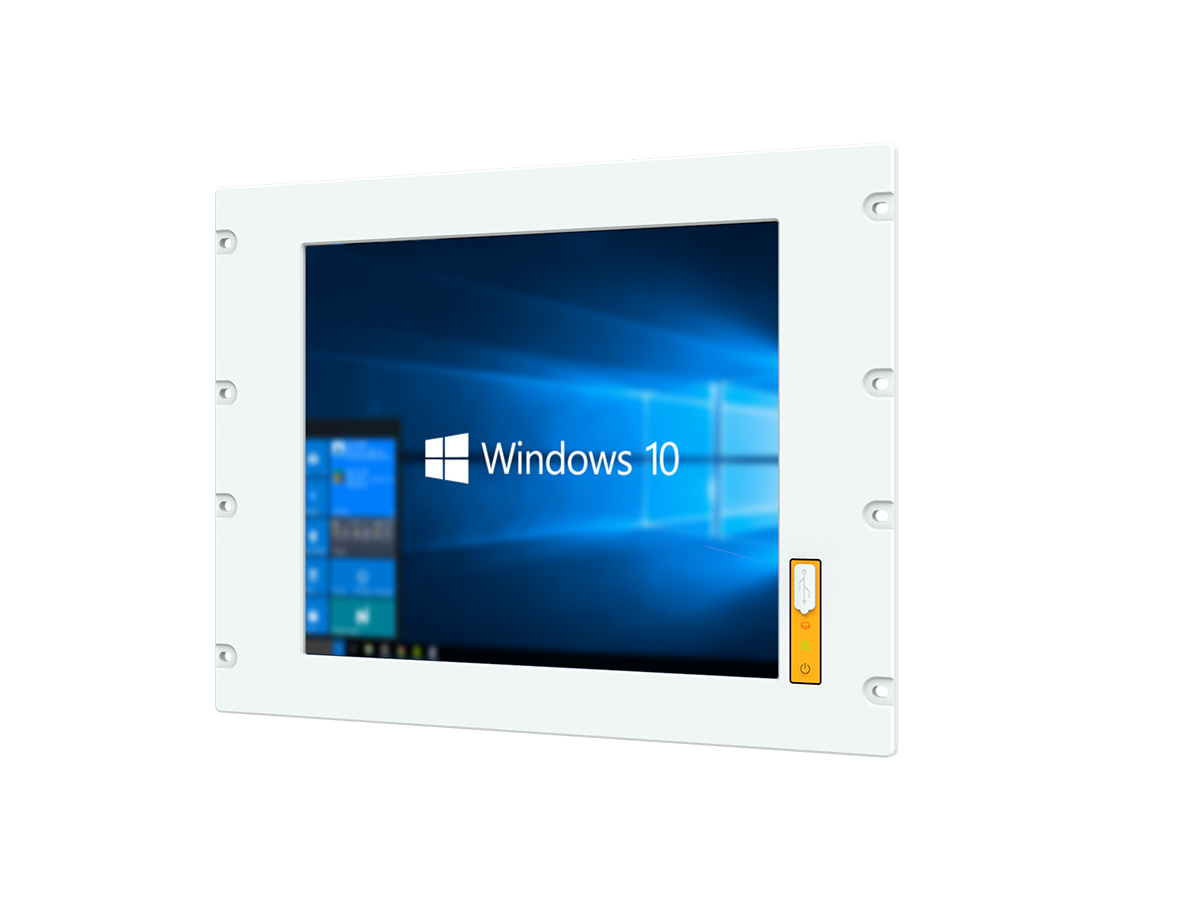

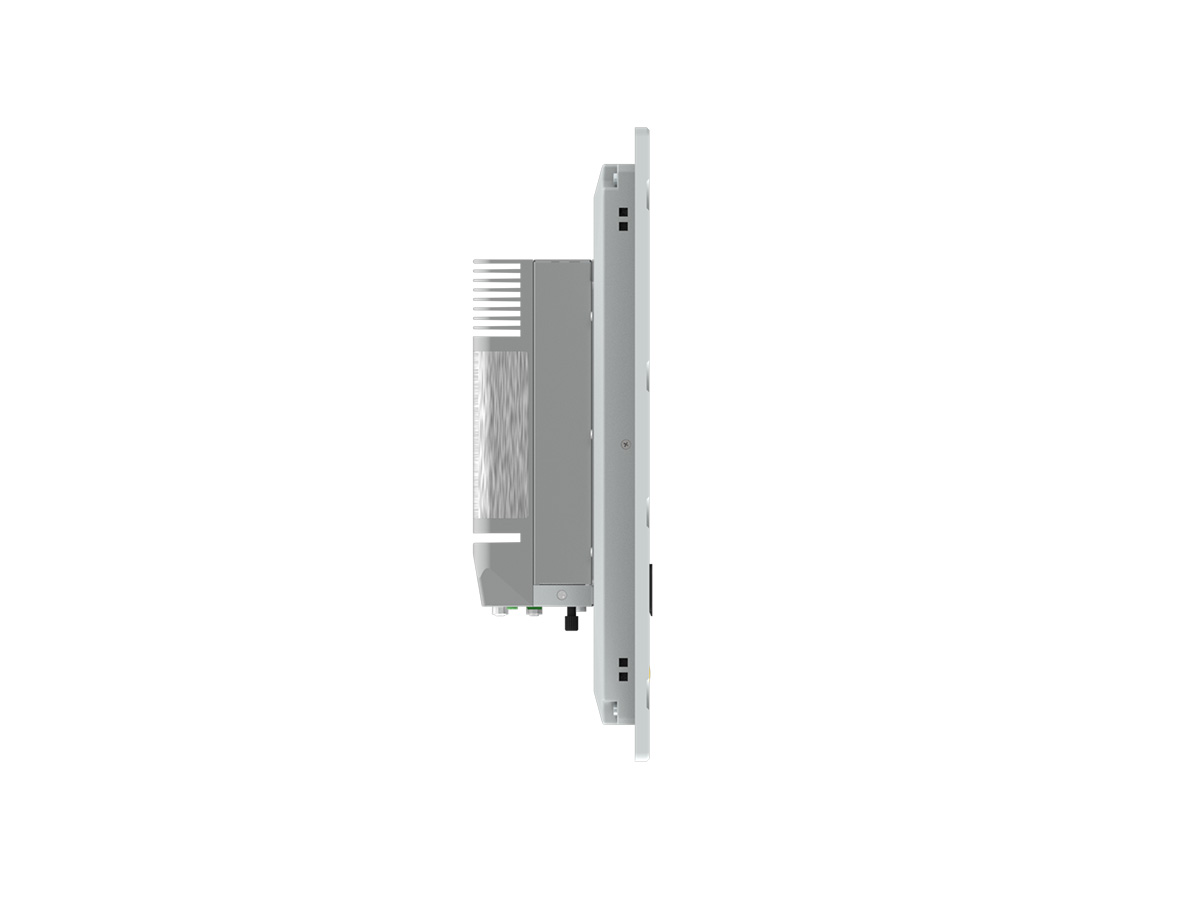

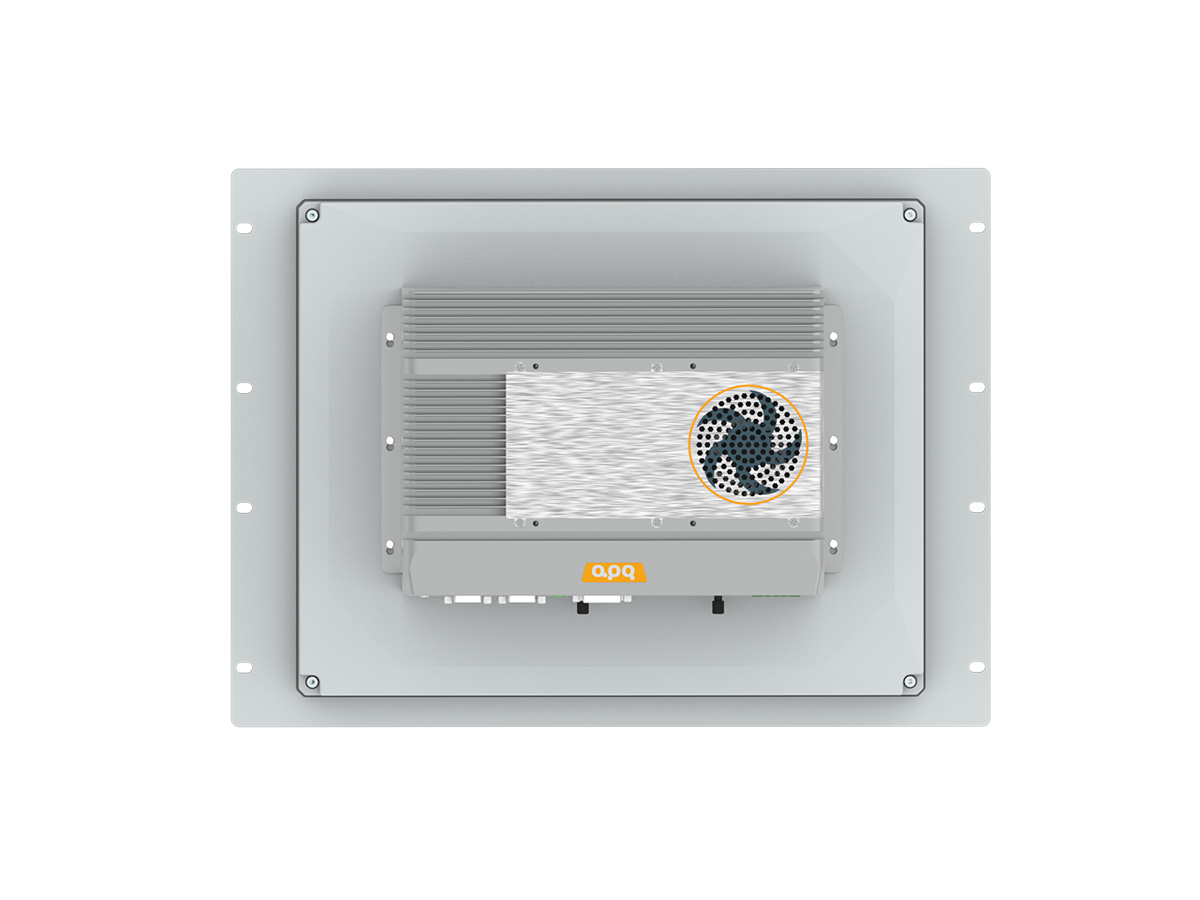

PGE7S系列H81平台工业一体机/工业平板电脑电阻触摸屏

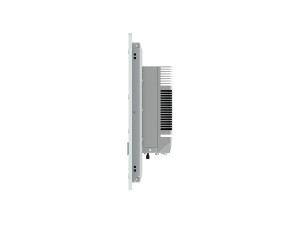

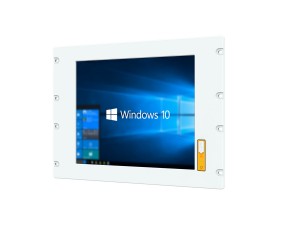

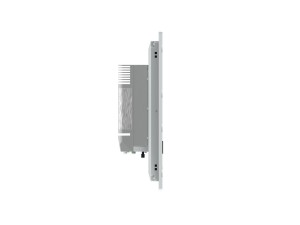

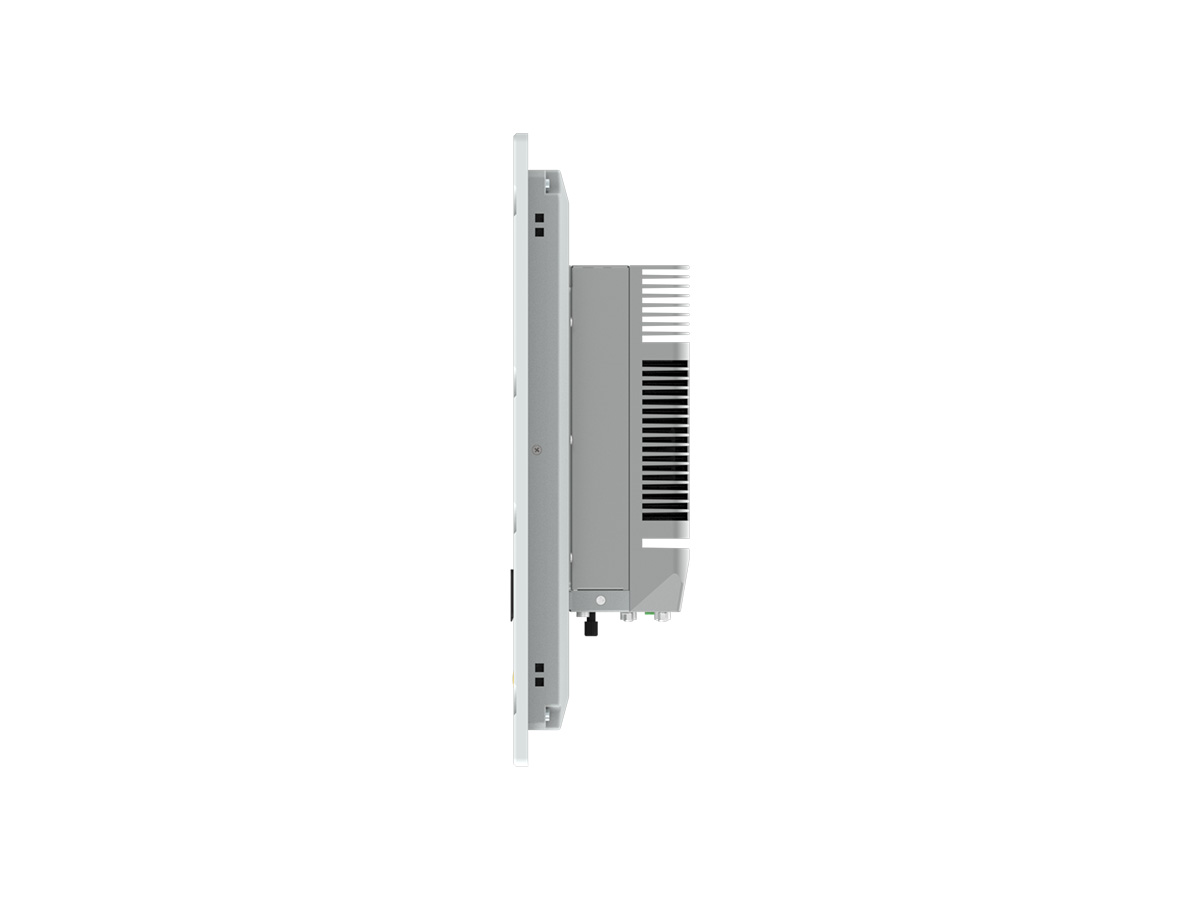

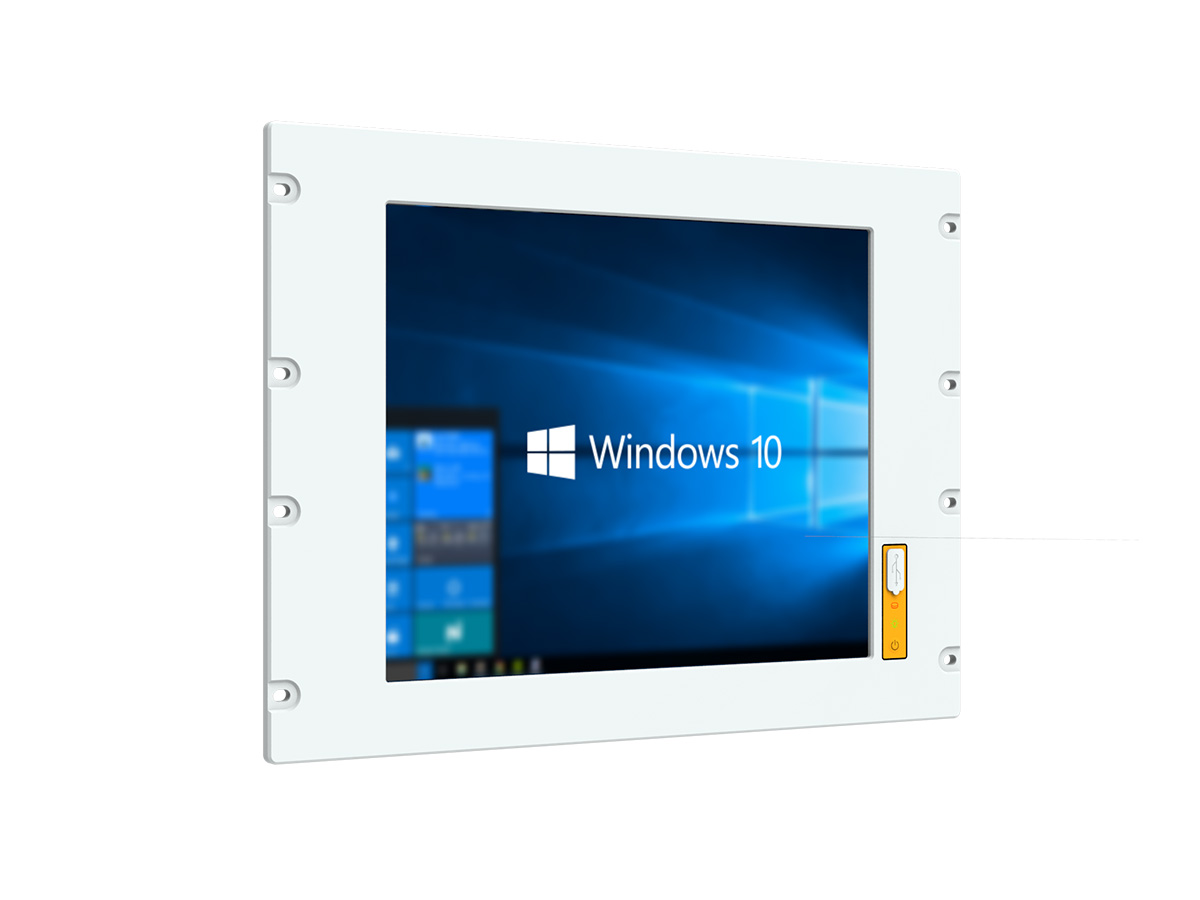

Note: The product image displayed above is PG170RF-E7S-H81 model

PGE7S系列H81平臺工業一體機/工業平板電腦電阻觸摸屏

特點:

電阻觸摸屏設計
模塊化設計17/19″可選,支持方屏/寬屏
前面板滿足IP65要求
前面板集成USB Type-A和信號指示燈
支持Intel? 4th/5th Gen Core/Pentium/Celeron Desktop CPU, TDP 65W,
搭配Intel? H81芯片組
2個Intel千兆網絡接口和4個DB9串口
M.2和2.5寸雙硬盤位存儲支持
4路顯示輸出 VGA,DVI-D,DP++和內部LVDS,最高支持4K@60Hz分辨率
9~36V直流供電（可選12V）
上架式/VESA安裝

遠程管理
狀態監控
遠程運維
安全控制

聯系我們

掃(sao)碼即(ji)可添加微信，售(shou)前客(ke)服為您(nin)提供(gong)咨詢(xun)服務

產品描述

阿普奇電阻(zu)觸摸屏工(gong)業一體機PGxxxRF-E7S系(xi)列采用H81平臺采用(yong)電(dian)阻(zu)式觸摸屏設計，適(shi)用(yong)于工業控制(zhi)和交互界面。同時，該(gai)機器具有(you)模塊化(hua)設計，可選擇17英寸或19英寸(cun)的(de)顯示屏，支持方形屏幕和寬屏幕。前(qian)面板符合(he)IP65防護等級標準，能夠有效(xiao)防塵防水，保(bao)證設備穩定運行。前面板集(ji)成(cheng)USB Type-A接口和(he)(he)信號指示燈，方便用(yong)戶連(lian)接外(wai)部設備和(he)(he)進(jin)行狀態(tai)監控(kong)。支(zhi)持(chi)英特爾?第四(si)/五代Core/Pentium/Celeron臺(tai)式CPU，TDP 65W，搭載英特爾? H81芯(xin)片(pian)組，性能可靠。同(tong)時，具有2個英特爾千兆網絡接口(kou)和4個DB9串口，滿足多種(zhong)連網(wang)和數(shu)據傳(chuan)輸需求。支(zhi)持M.2和2.5英寸雙硬盤(pan)存儲，提供更大的(de)存儲空間。具有4個顯示輸出通道(dao)，包(bao)括VGA、DVI-D、DP++和內部LVDS，支持高達4K@60Hz的分辨率(lv)，顯示效果清晰。同時，支(zhi)持9~36V DC電(dian)源輸(shu)入（12V可(ke)選(xuan)），適(shi)應不同電源環(huan)境。可(ke)選(xuan)擇機(ji)架安裝或(huo)VESA安(an)(an)裝，便于安(an)(an)裝和(he)布置。

總之，阿普奇電阻式觸摸(mo)屏(ping)工業一體機PGxxxRF-E7S系列(lie)具(ju)有穩(wen)定的性(xing)能、靈(ling)活的設(she)計和豐富(fu)的接口，適用(yong)于(yu)各(ge)種工業(ye)控制和自動化應用(yong)，是您可(ke)靠的工業(ye)智(zhi)能設(she)備選擇(ze)。

產品介紹

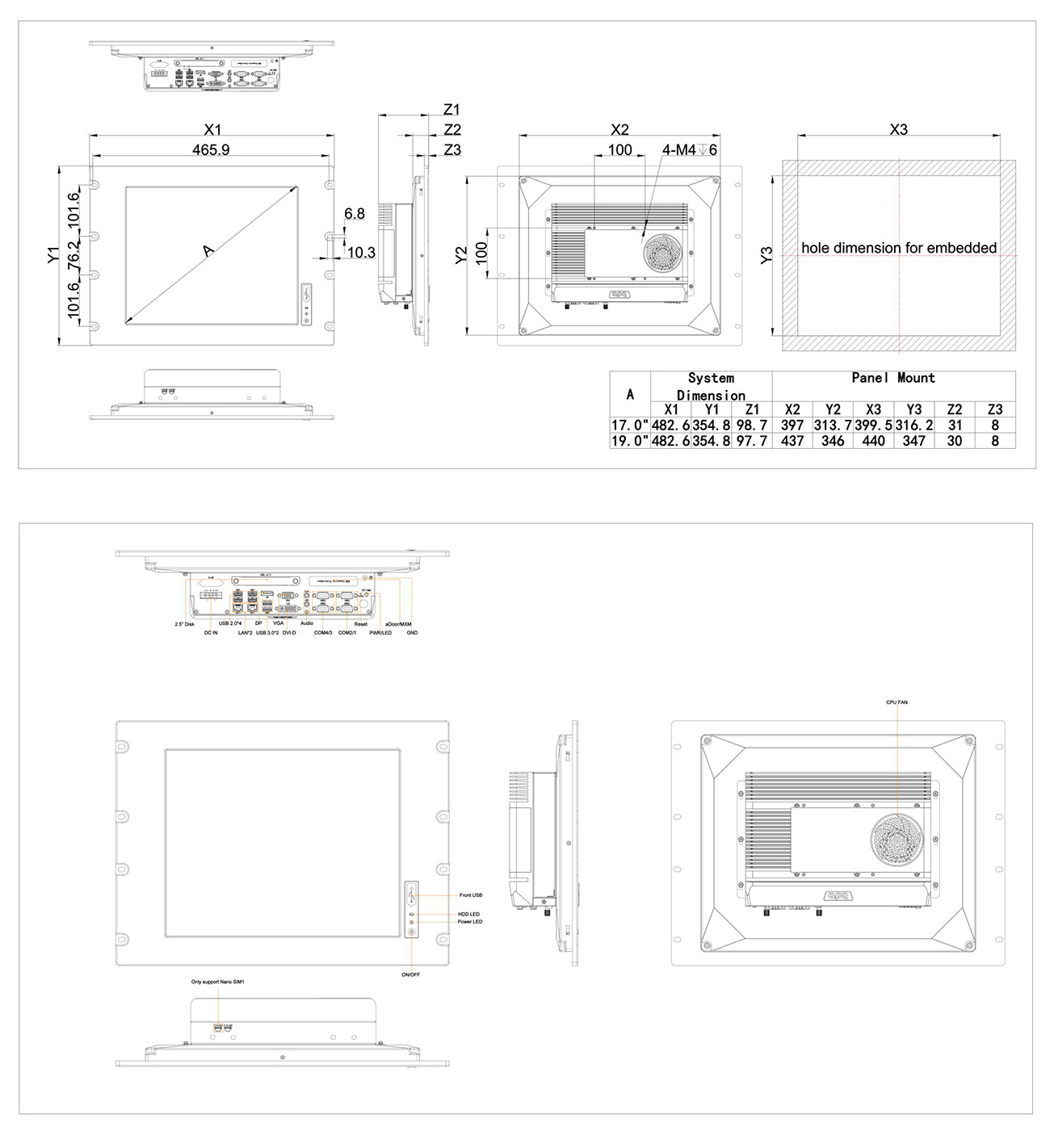

工程圖紙

下載產品資料

掃碼添加微(wei)信，獲取最新產品資料文件

Model		PG170RF-E7S	PG190RF-E7S
LCD	Display Size	17.0"	19.0"
	Display Type	SXGA TFT-LCD	SXGA TFT-LCD
	Max. Resolution	1280 x 1024	1280 x 1024
	Luminance	250 cd/m2	250 cd/m2
	Aspect Ratio	5:04	5:04
	Viewing Angle	85/85/80/80°	89/89/89/89°
	Max. Color	16.7M	16.7M
	Backlight Lifetime	30,000 hr	30,000 hr
	Contrast Ratio	1000:01:00	1000:01:00
Touchscreen	Touch Type	5-Wire Resistive Touch
	Controller	USB signal
	Input	Finger/Touch pen
	Light Transmission	≥78%
	Hardness	≥3H
	Click lifetime	100gf, 10 million times
	Stroke lifetime	100gf, 1 million times
	Response time	≤15ms
Processor System	CPU	Intel? 4/5th Generation Core / Pentium/ Celeron Desktop CPU
	TDP	65W
	Socket	LGA1150
	Chipset	Intel? H81
	BIOS	AMI UEFI BIOS (Support Watchdog Timer)
Memory	Socket	2 * Non-ECC SO-DIMM Slot, Dual Channel DDR3 up to 1600MHz
	Max Capacity	16GB, Single Max. 8GB
Graphics	Controller	Intel? HD Graphics
Ethernet	Controller	1 * Intel i210-AT GbE LAN Chip (10/100/1000 Mbps) 1 * Intel i218-LM/V GbE LAN Chip (10/100/1000 Mbps)
Storage	SATA	1 * SATA3.0, quick release 2.5-inch hard drive bay (T ≤ 7mm) 1 * SATA2.0, Internal 2.5" hard disk bays (T≤9mm, Optional)
	M.2	1 * M.2 Key-M (SATA3.0, 2280)
Expansion Slots	MXM/aDoor	1 * APQ MXM (Optional MXM 4 * LAN/4 * POE/6 * COM/16 * GPIO expansion card) 1 * aDoor Expansion Slot
	Mini PCIe	1 * Mini PCIe (PCIe2.0 x1 (Share PCIe signal with MXM, optional) + USB 2.0, with 1*Nano SIM Card)

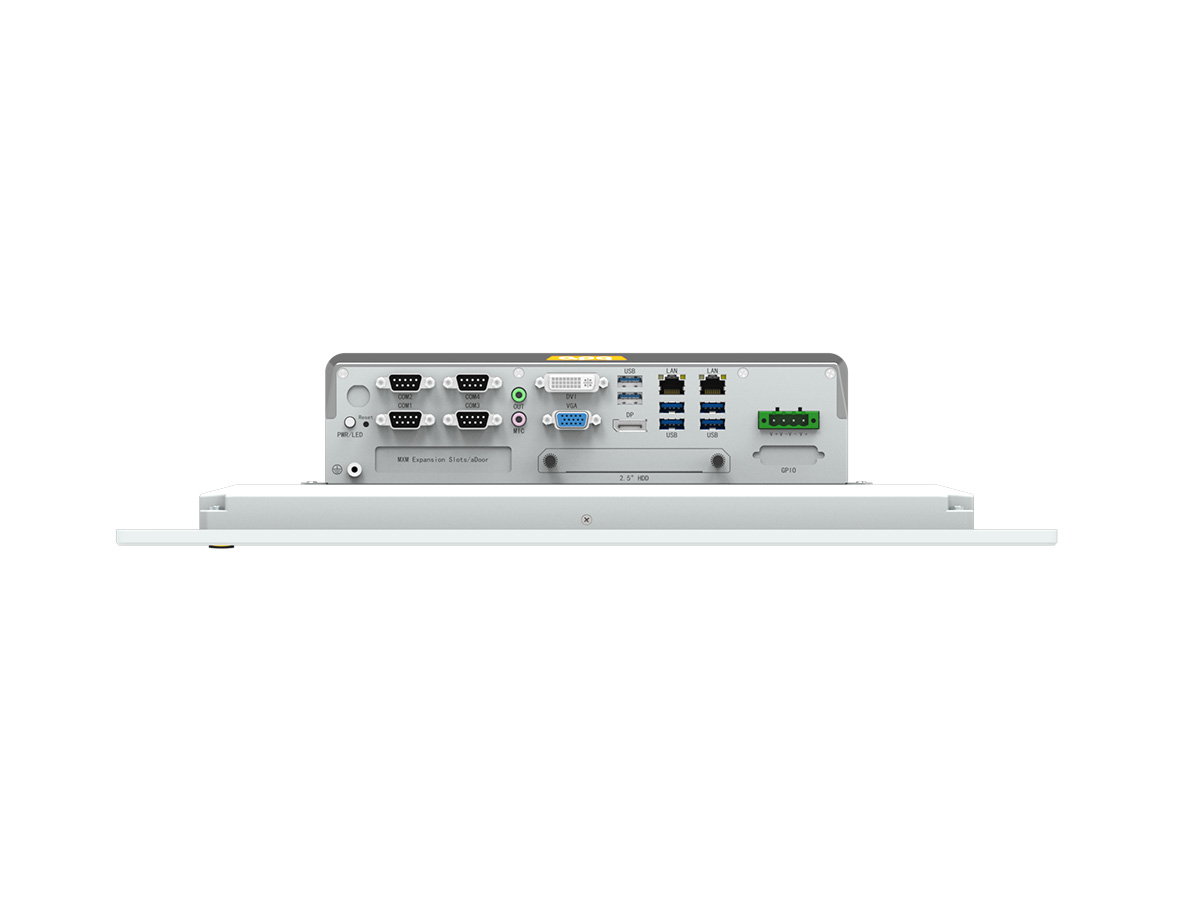

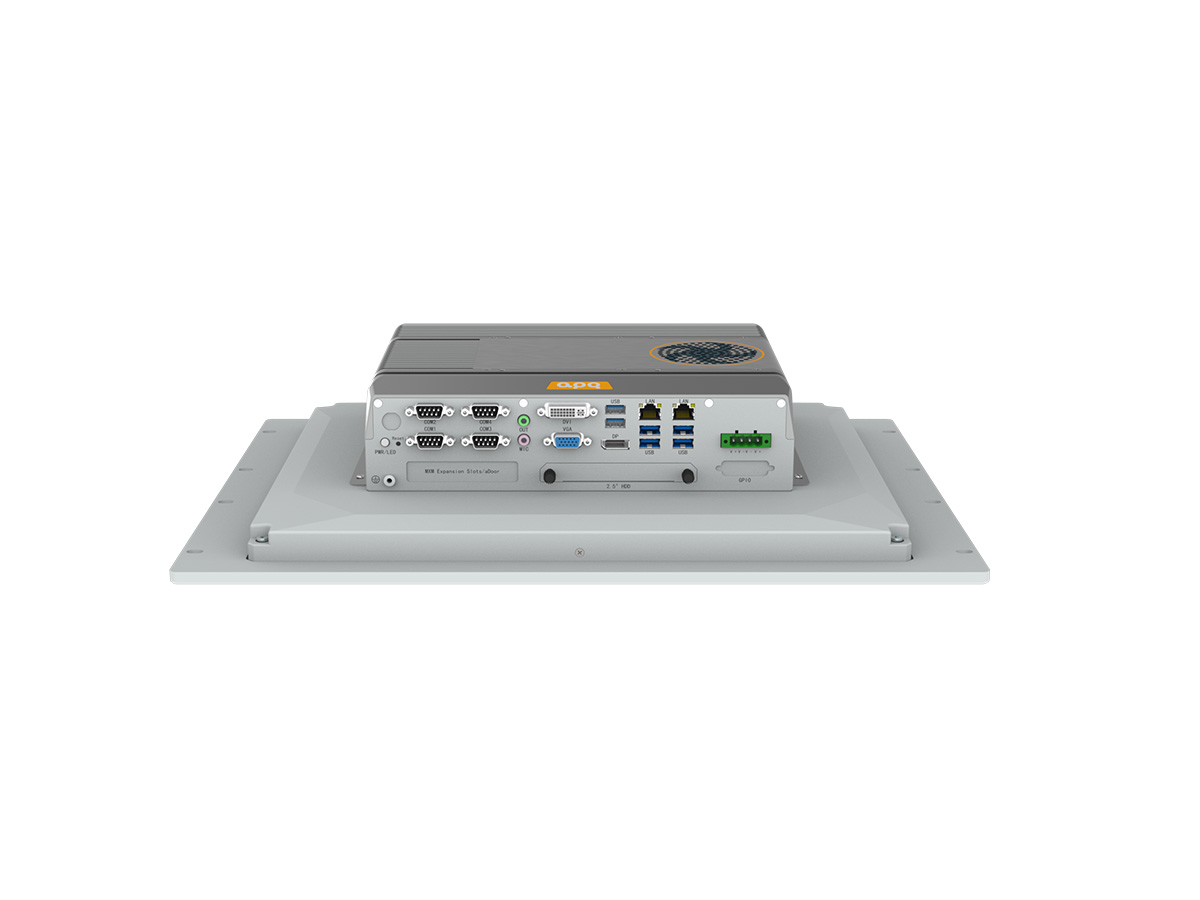

Front I/O	Ethernet	2 * RJ45
	USB	2 * USB3.0 (Type-A, 5Gbps) 4 * USB2.0 (Type-A)
	Display	1 * DVI-D: max resolution up to 19201200 @ 60Hz 1 VGA (DB15/F): max resolution up to 19201200 @ 60Hz 1 DP: max resolution up to 4096*2160 @ 60Hz
	Audio	2 * 3.5mm Jack (Line-Out + MIC)
	Serial	2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) 2 * RS232 (COM3/4, DB9/M)
	Button	1 * Power Button + Power LED 1 * System Reset Button (Hold down 0.2 to 1s to restart, and hold down 3s to clear CMOS)

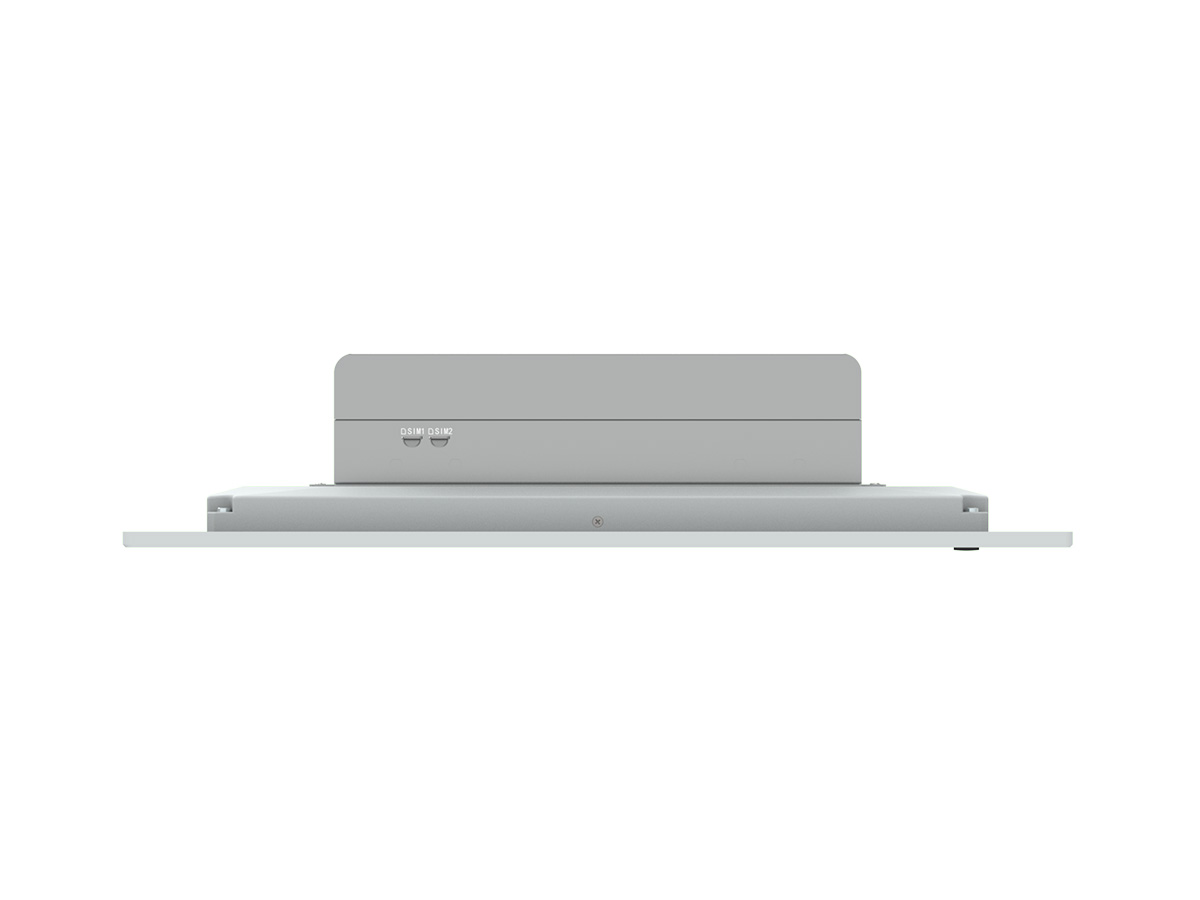

Rear I/O	Antenna	4 * Antenna hole
	SIM	1 * Nano SIM card slot (SIM1)
Internal I/O	USB	2 * USB2.0 (wafer)
	LCD	1 * LVDS (wafer): max resolution up to 1920*1200 @ 60Hz
	TFront Panel	1 * TF_Panel (3 * USB 2.0 + FPANEL, wafer)
	Front Panel	1 * Front Panel (PWR + RST + LED, wafer)
	Speaker	1 * Speaker (2-W (per channel)/8-Ω Loads, wafer)
	Serial	2 * RS232 (COM5/6, wafer)
	GPIO	1 * 16 bits DIO (8xDI and 8xDO, wafer)
	LPC	1 * LPC (wafer)
	SATA	2 * SATA 7P Connector
	SATA Power	2 * SATA Power (SATA_PWR1/2, wafer)
	FAN	1 * CPU FAN (wafer) 2 * SYS FAN (wafer)
Power Supply	Type	DC, AT/ATX
	Power Input Voltage	9 ~ 36VDC, P≤240W
	Connector	1 * 4Pin Connector, P=5.00/5.08
	RTC Battery	CR2032 Coin Cell
OS Support	Windows	Windows 7/10/11
	Linux	Linux
Watchdog	Output	System Reset
	Interval	Programmable via Software from 1 to 255 sec
Mechanical	Enclosure Material	Radiator/Panel: Aluminum, Box/Cover: SGCC
	Mounting	Rack-mount, VESA
	Dimensions	482.6mm(L) * 354.8mm(W) * 98.7mm(H)	482.6mm(L) * 354.8mm(W) * 97.7mm(H)
	Weight	Net: 8.7kg, Total:11.7kg	Net: 9.kg, Total: 13.1kg
Environment	Heat Dissipation System	PWM Fan Cooling
	Operating Temperature	0~50℃	0~50℃
	Storage Temperature	-20~60℃	-20~60℃
	Relative Humidity	10 to 95% RH (non-condensing)
	Vibration During Operation	With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis)
	Shock During Operation	With SSD: IEC 60068-2-27 (15G, half sine, 11ms)
